Wave bench

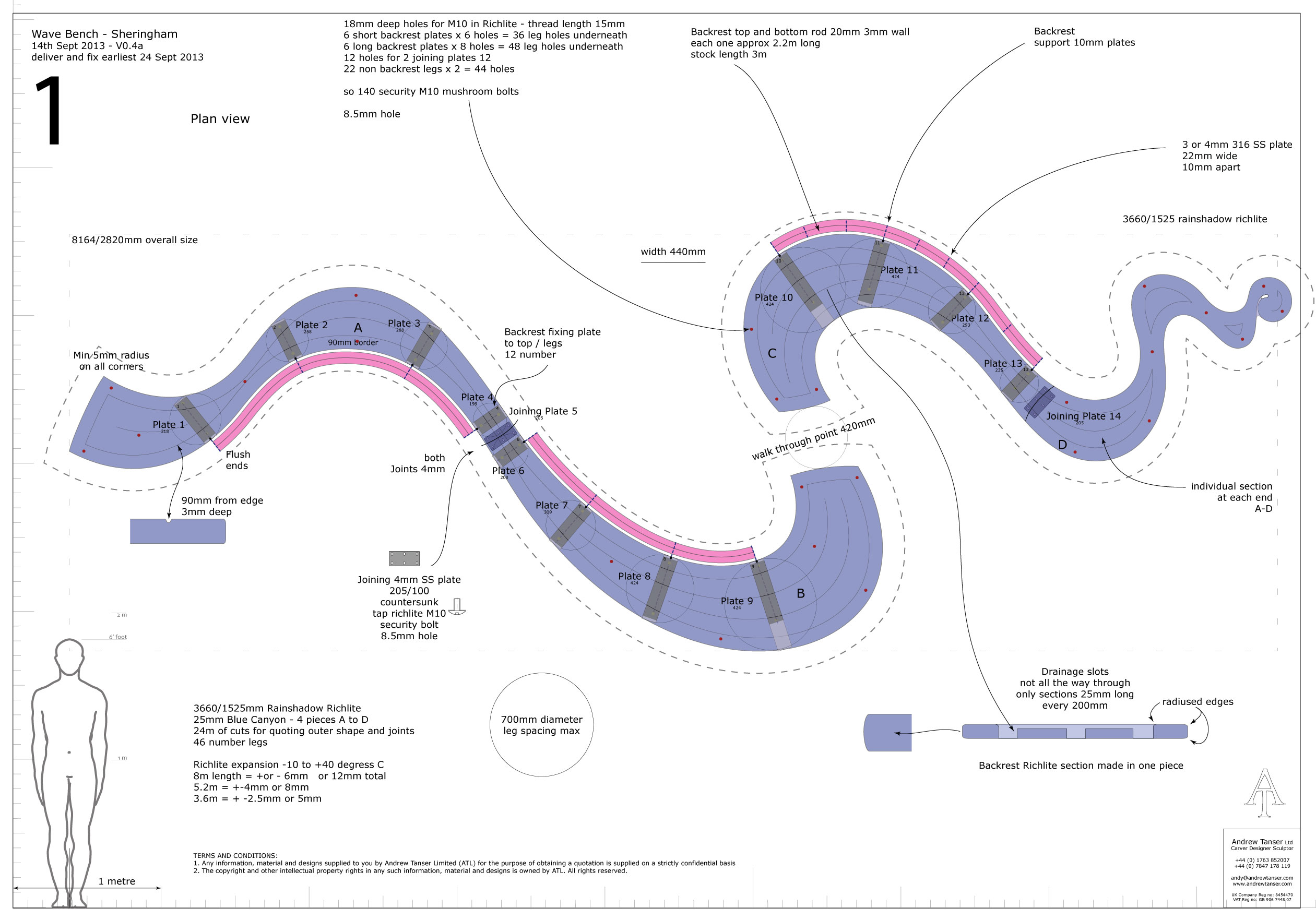

working drawing 8m long

Installation

Prior to concrete foundations being poured

Bench & 20m of Curved Railings

Main contractor paving around the bench Wave bench & Curved stainless steel ornamental railings based on the straight railings 20m long

straight railings

CAD drawing

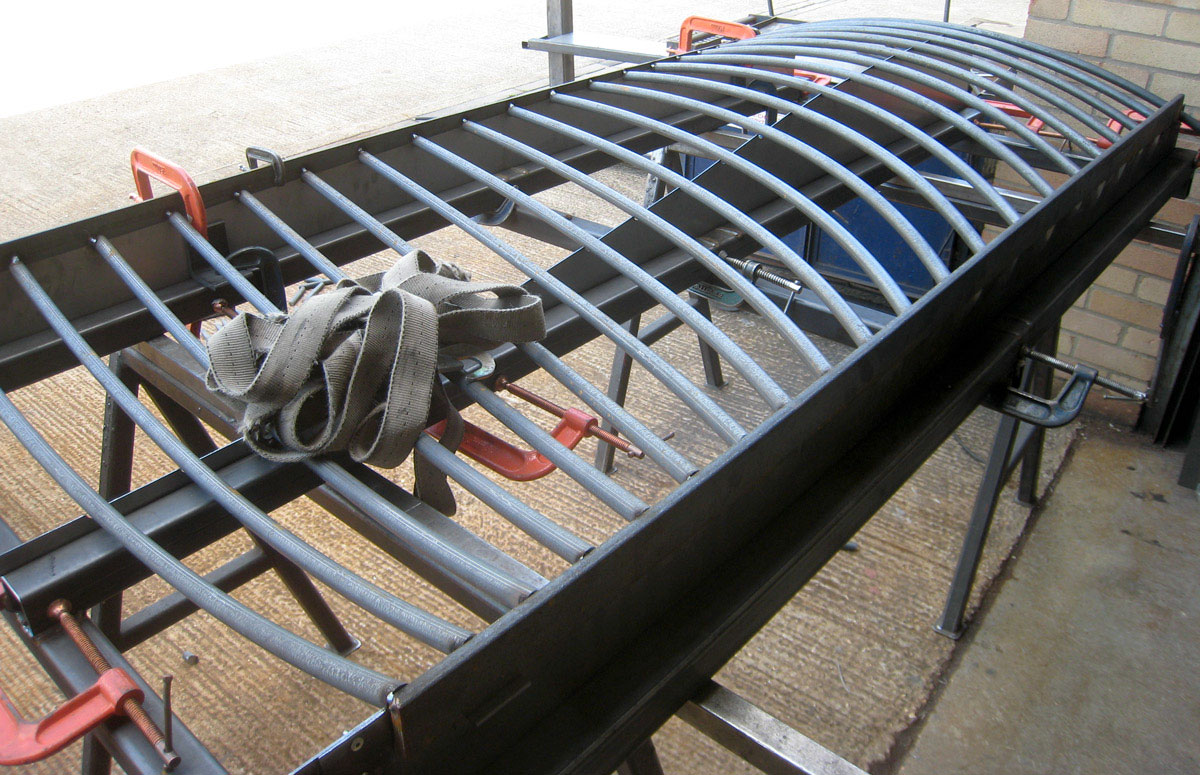

Jig

Production jig developed from CAD

Corner detail

Rippling fluid surface. 50m straight railings in 2m sections, 100mm maximum gaps. Steel galvanised and powder coated. To British Standards I did not want anything to literal, just the essence of the sea, wind and rolling landscapes, with plenty of movement. The railings are made up of straight top and bottom rails and the uprights are all the same radius, each one spins around about 10 degrees and leans over in increments. A simple idea but hard to achieve cleanly

History timeline

Enameled steel 1200 x 600mm Illustrations by Andrea Bassil
